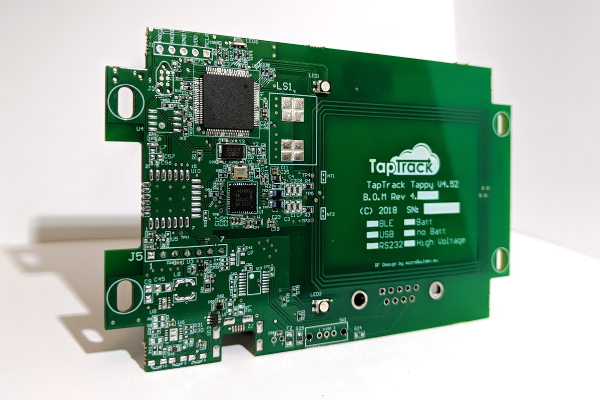

TappyUSB - No Enclosure (board/cord only)
This version of the TappyUSB removes the plastic casing, leaving the cord and circuit board only; but there is nothing limited about the capabilities of this reader/writer. Get the same Tappy quality, with the price and features that best match your budget. Choose the one you need; and try it today!
What you get with the TappyUSB reader, without enclosure:
- Read the most popular NFC chips (ISO 14443 A/B, Tag Types 1,2,3, and 4.)
- Total technical support from TapTrack, the engineers who created Tappy.
- Consistent power supply: Use the AC adapter plug for reliably wired output.
Software Support:
| Encoding Software | |
| User Manual | Download |
| Command Reference | Download |
| Contact the Engineers | taptracksupport@tagstand.com |
Product Specifications:
| Supported Standards | ISO/IEC 14443A, 14443B, 18092, ECMA 340 Peer-to-Peer |
| Supported Chips |
NFC Forum Type 1*: Topaz, Jewel NFC Forum Type 2*: NTAG 20x, 21x, MIFARE Ultralight, Ultralight C NFC Forum Type 4*: DESFire EV1 2K/4K/8K MIFARE Classic 1K, 4K (*Support any NFC Forum compliant ISO 14443 tag. The brands listed are the most common.) |
| Frequency | 13.56 MHz |
| Max RF Outpout Power | <0.5W |
| RF Communication Speed | 106, 212, 424 kbits/s |
| Power Supply | DC 5V (from USB) |
| Battery Life | 6 to 8 hours, 10 to 12 hours extended battery |
| Current | Charging: 500 mA typical |
| Read Range | 40mm typical, 100mm max |
| Interface | Bluetooth Low Energy (BLE), also known as Bluetooth Smart |
| Status Indicator Lights |
6x RGB LED for NFC Scan Status 1x Blue LED for BLE status 1x Red LED for power charging status 1x Yellow LED for battery charging status 1x Green LED for battery charged status |
| Working Temperature | -10°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Enclosure Dimensions | L = 12.5cm ; W = 8cm ; H = 3cm |
SKU#: 05-710
